SINGLE PHASE INDUSTRIAL UPS SERIES

• OVERVIEW
• CATALOG

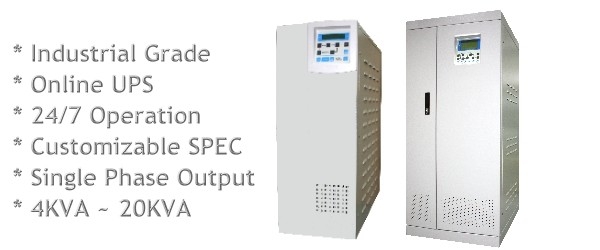

• Available from 4KVA to 20KVA, this Single Phase Industrial UPS/inverter series is a fully customizable high quality UPS inverter with durable modularized IGBT design to handle non-linear loads. The system is controlled by multiple CPUs and features robust design for every day use. This series, like the Three Phase Industrial UPS/inverter, is customizable to meet customers demand in terms of system voltage, charging current, and with AC input (or without). It supports “Cold-Start” with battery connected when AC is not available, and can also direct load to AC bypass should overload conditions arise within 4ms.

  Main features include:

  • ON-LINE UPS with durable modularized IGBT design
  • Single Phase output only
  • Durable low frequency design to support high non-linear load
  • True galvanic isolation design to avoid ground current leakage
  • Automatic transfer to AC in overload conditions within 4ms
  • Suitable for 24/7 application
  • Peak 87% efficiency
  • Reliable input surge protection and EMI suppression
  • Intelligent battery charger to ensure battery life
  • Support “Cold Start” function (DC-start)
  • DB9/RS232
  • Fully customizable DC voltage: 48v, 96v, 120v,.. 192v.

  For more information, please download the catalog below or contact our sales office at [email protected].

• Single Phase Industrial UPS Catalog PDF
