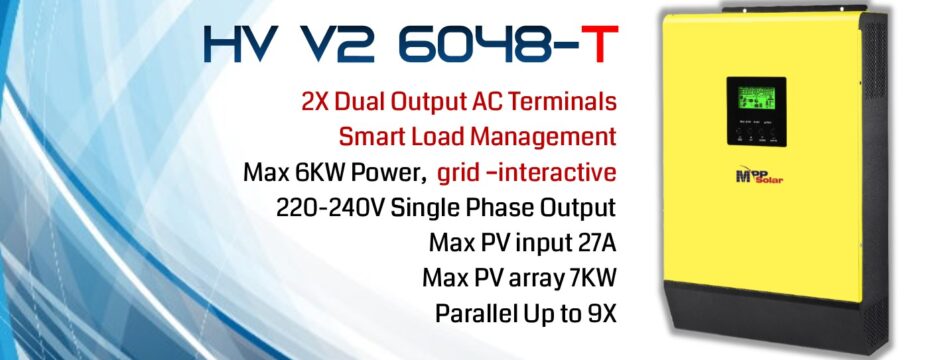

Derived from HV2-5048, the new HV V2 6048-T maintains most of the original design of its predecessor, including grid-interactive which is the essence of all Hybrid models. This new model is also added with these NEW features.
- maximum power output from 5KW to 6KW
- 2X dual AC output terminals for smart load management
- maximum PV input current 27A
- built-in parallel kit

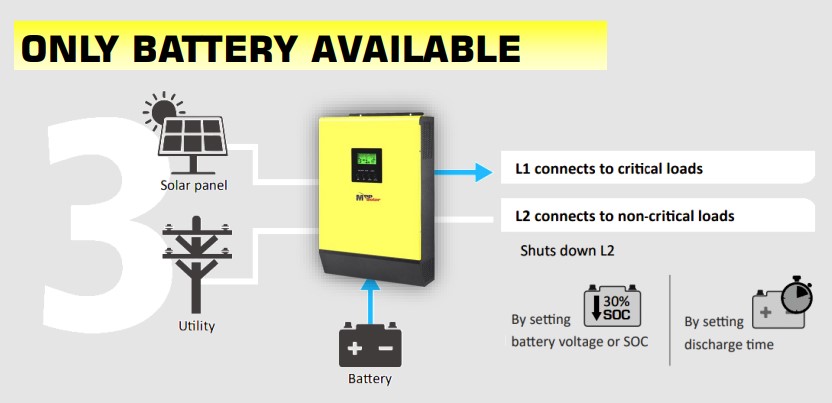

With the dual output, the 2nd output can be programmed to schedule ON/OFF control, cut-off voltage or SOC, and discharging time directly from LCD display.
Using Generator as AC-Input
- Generator rating is recommended to be 30-50% larger than the inverter rating to reduce chances of overload.
- Inverter-generators are strongly recommended due to its cleaner output than conventional generators. Unsuitable generator output will be rejected by the inverter in order to protect battery/load.
- For obvious reasons, when using generator as AC input, grid-interactive setting must be DISABLED.

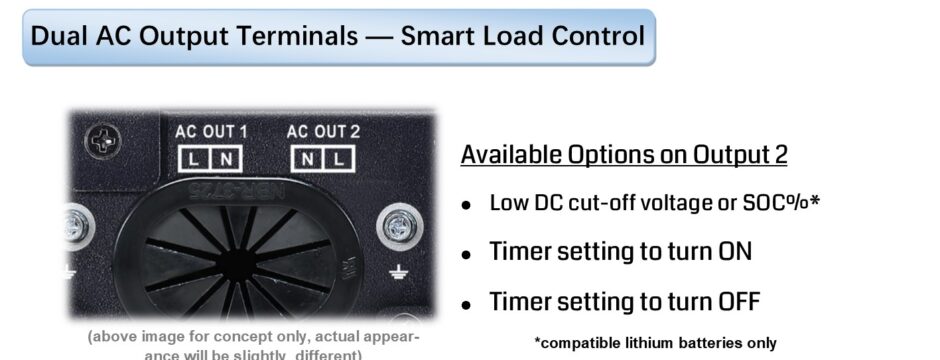

- 2 AC output load terminals for smart load control
- Maximum power output now upgraded to 6KW
- Maximum PV input current now 27A
- Built-in parallel kit
- Compatible with WIFI Module (sold separately)

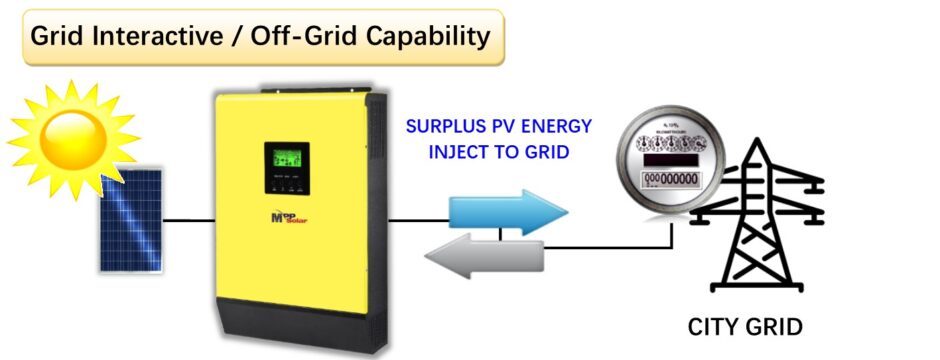

- Grid-interactive (CE only)
- Max 7KW PV array
- High PV input 500V (Voc)
- Max system charging current 120A
- Battery optional mode
- Equalization mode available
- 6KW pure sine wave output, 48V system voltage
- Max utility charging current 120A
- Max solar charging current 120A
- Max Bulk/Float setting 64V
- Suitable for off-grid or with grid input
- Extensive programmable menu

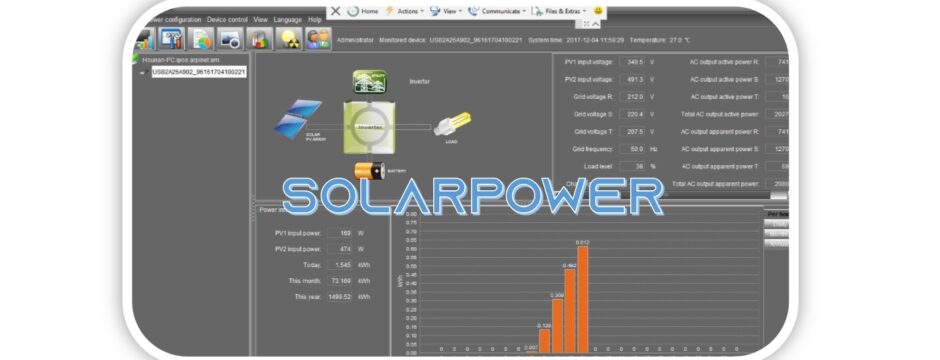

- FREE monitoring software on PC / Mac / Linux
- SolarPower User Manual
**For WatchPower software please contact our Sales team sales@mppsolar.com directly.
