PIP-MAX SERIES

The MAX Series models are the latest members to our 220-240V output type inverter family and offer the most comprehensive list of features to date.  There are 3 MAX models to choose from:

• NEW 11KW / 48V
• 8.0KW / 48V (7.2KW discontinued)
• 3.6KW / 24V

The MAX series retain several main features from the GK, MG, and MK (high PV input, batteryless operation,  parallel support, advanced monitoring, Pylontech/Weco/Soltaro Lithium BMS support, timer control on AC output & charging) and in addition, MAX 48v models come with built-in parallel kits already, so there is no need to source parallel kits separately. All models in the MAX series also offer upgraded wireless monitoring feature to WIFI which is more secure and no longer limits by the short working range of Bluetooth.  3624MAX is also one of the very few 24V models that can support parallel operation (optional feature requires special order).

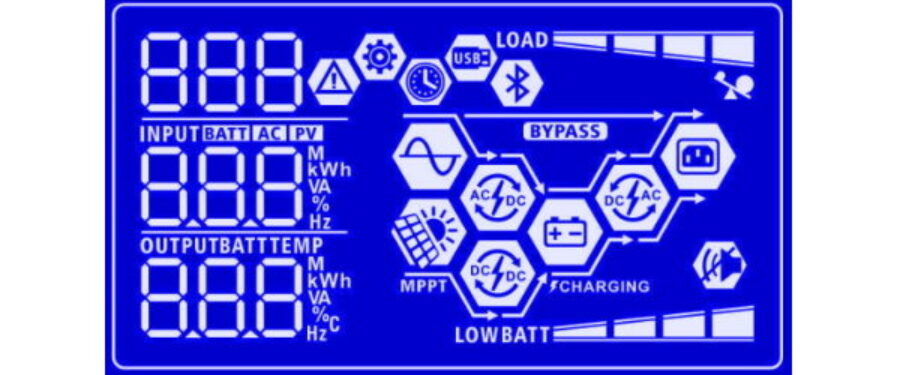

A colorful and unique feature only to the MAX series is the built-in RGB LED that is very visible to user what energy source is being consumed and some display options can be programmed also from the LCD menu.

The MAX supports maximum parallel number of units up to 6, in either single phase or 3-phase configuration as shown below.  Note: parallel operation requires battery connection at all times.

Single Phase

3-Phase

For more information, please download the catalogs at the tab page above or contact our sales office at [email protected].
