The 3024LV-MSD is a new LV model derived from its predecessor (2424LV-MSD, 120VAC output) with the following 6 new upgraded feature:
- High PV input design 250V (Voc)
- Parallel support now up to 9 units
- Split phase support 120/240VAC (via parallel)
- Batteryless design battery optional
- Built-in parallel kit
- BMS port lithium battery communication*
Similar to the LV2424 and 3048LV-MK, the 3024LV-MSD is also a 120V output inverter alone but can parallel into split phase output (120V/240V) with 2 units or more. Also, parallel configuration comes in 3 types: single phase (120VAC), 3-phase (120/208VAC), or split phase (120V/240V).

Important note about Batteryless Operation
When configuring system in parallel using multiple units, please be sure that a battery MUST be used or otherwise it may cause system to work incorrectly, or possibly lead to damage. Failure caused by the lack of a battery is considered as an installation error and will not be covered under warranty

For more information, please download the catalogs at the tab page above or contact our sales office at [email protected].

*BMS cable required (optional accessory)
- Max 3KW / 24VDC pure sine wave output 120V
- Parallel support up to 9 units, in single phase (120V), split phase (120V/240V/208V) or 3-phase (208V)
- Max PV input up to 250V
- Built-in parallel kit
- Batteryless operation (single unit mode only)

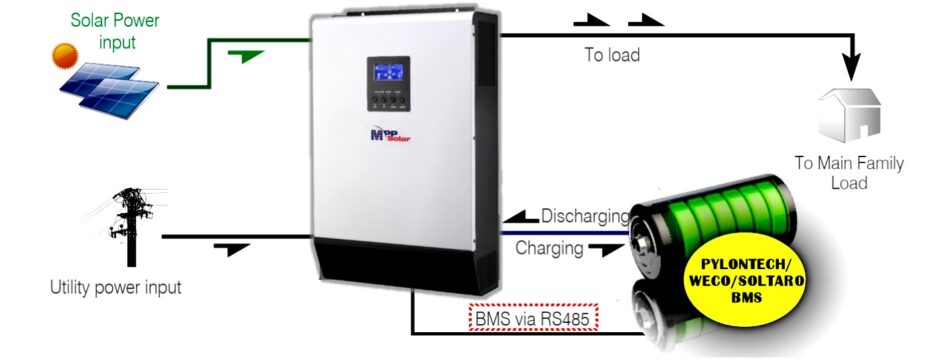

- Pylontech/Weco/Soltaro Lithium BMS support*
- Equalization Charge
- Built-in MPPT solar charger max 80A
- Built-in utility battery charger max 800A
- Comprehensive programming options
- BMS + RS232 communication ports
- Indoor installation only
- Wide AC input range for bypass
- FREE bundled monitoring software on PC
*BMS cable required (optional accessory)
Using Generator as AC-Input
- Generator power is recommended to be 50% larger than the inverter rating to reduce chances of overload.
- Inverter-generator is recommended due to its cleaner output than conventional generators. Unsuitable generator output may be rejected by the inverter.
