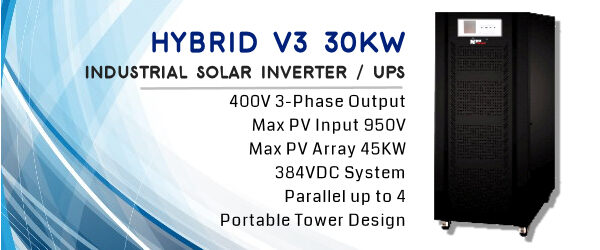

Hybrid V3 30KW (Industrial)


  • This Hybrid V3 30KW is the single largest 3-phase inverter we offer at the moment with 230V (P-N) / 400V (P-P) output and it is designed mainly for industrial application with a DC nominal base voltage of 384V.  Unlike traditional industrial size UPS which relies mainly on grid power during normal operation and battery for backup, the Hybrid V3 30KW comes integrated with solar input which allows smart energy management by utilizing solar, battery and utility powers.  Similar to all of our hybrid-line inverters (grid feed capable), the Hybrid V3 30KW can also send any excess solar power to grid.

    There are 3 main operating modes —

    Primary specification of the Hybrid V3 30KW include

    • 3-Phase 400Vac Output
    • 384Vdc System Voltage
    • 950V Max PV Input
    • Max 45KW PV Array

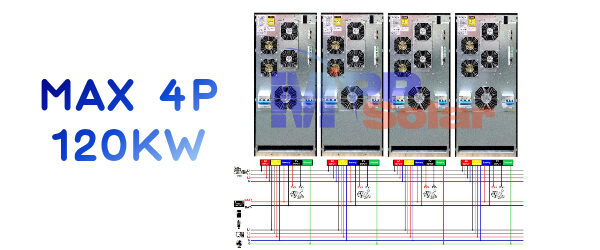

    • Max Parallel up to 4 Units (120KW)

    For more information, please download catalogs from tab page above or contact our sales office at sales@mppsolar.com.

    Generator Support

    In OFF-GRID mode, generators may be used in place of utility for backup.  An integrated dry contact may be used to control on/off of the generator.  Only quality inverter-type generators are recommended for use.

  • Main features include:

    • 30KW Industrial Grade Solar Inverter / UPS
    • 3-Phase 400VAC Output
    • Max PV input up to 950V
    • Max PV array support up to 45KW
    • Parallel up to 4 units (120KW)
    • Pure sine wave output
    • Max system charging 80A
    • Supports generator use (Off-Grid mode only)
    • Programmable parameters
    • Efficient tower design, easy to install

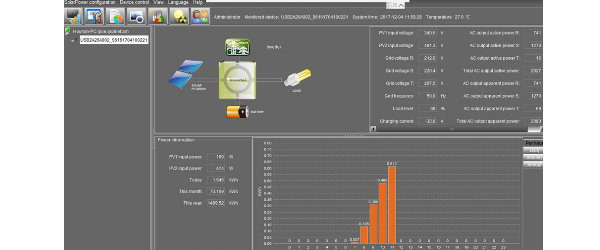

    • Free monitoring software

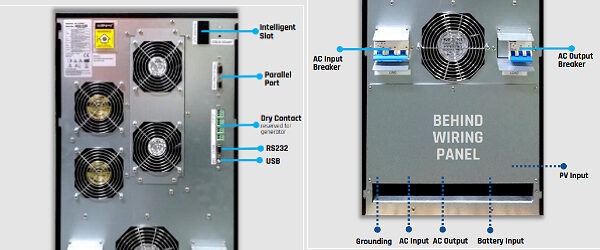

    • USB, RS232 communication interface
    • Generator dry contact

  • **For SolarPower software please contact our Sales team sales@mppsolar.com directly.
