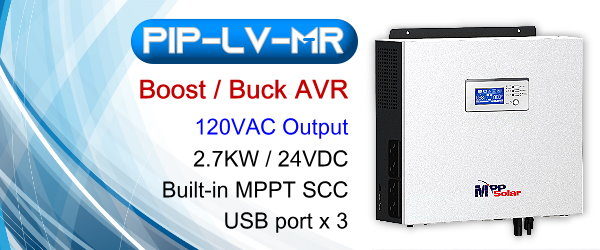

PIP-LV-MR Solar AVR Series


  • This LV-MR is a unique and brand new addition to the LV (low voltage 110-120v) inverter family.  Designed for max 2.7kw output at 24vdc system, other notable features include Boost / Buck AVR (automatic voltage regulator) so this is suitable for users in countries with unstable grid input and require stable, regulated power output to load, as well as 3 built-in USB ports (2*type A, 1*type C) for quick charging of your USB load.  Below is a typical application diagram of this versatile AVR solar inverter.

    For more information, please download the catalogs at the tab page above or contact our sales office at sales@mppsolar.com.

    1. 110-120V output design for Low Voltage demands in US / Latin America
    2. Boost / Buck AVR functionality
    3. Max 2.7kw pure Sine Wave Output
    4. Max 750W / 25A MPPT solar controller + utility charger
    5. Built-in 3 x USB ports (5V, 3A)
    6. 24VDC system
    7. Programmable parameters
    8. Adjustable bulk & float charging voltage
    9. Support grid or generator input （inverter-type generator only)
    10. Overload and short circuit protection
    11. Lightweight, easy to install
    12. FREE monitoring software
    13. RS232 / USB communication ports
    14. LCD Display + LED indicators
    Using Generator as AC-Input

    1. Generator power is recommended to be 50% larger than the inverter rating to reduce chances of overload.
    2. Inverter-generator is strongly required due to its cleaner output than conventional generators.  Unsuitable generator output may be rejected by the inverter.

    1. LV-MR Series Catalog PDF
    2. LV-MR User Manual PDF
    3. Generator Requirement
    1. WatchPower User Manual

    **For WatchPower software please contact our Sales team sales@mppsolar.com directly.
