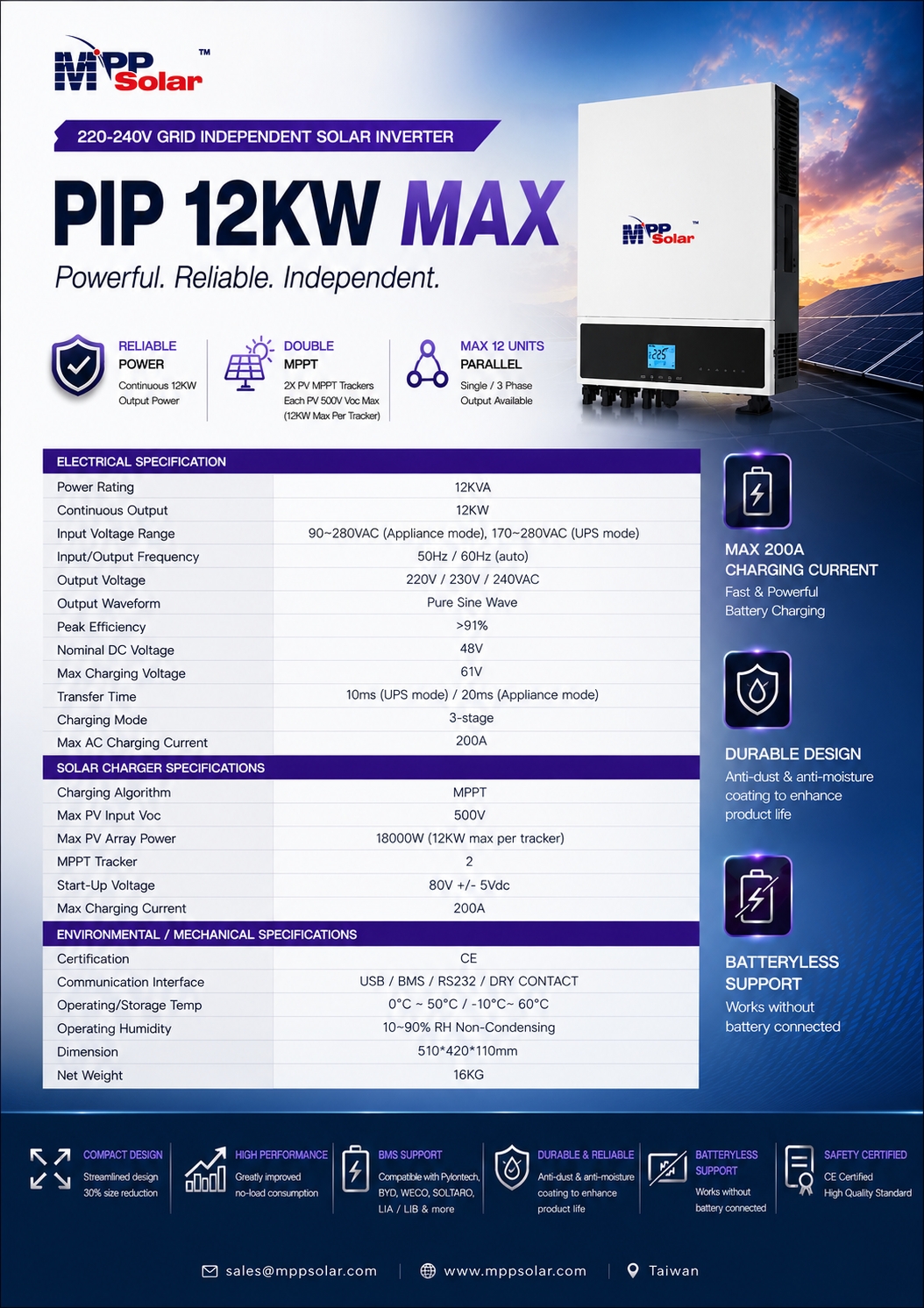

PIP 12KW MAX (12KW, 48VDC)

The PIP 12KW MAX is a high-performance 12kW independent solar inverter designed for demanding residential, commercial, and off-grid energy applications. Despite delivering up to 12kW of continuous output power, its redesigned architecture reduces the overall size by approximately 30%, creating a more compact and practical solution without compromising performance. With a new HMI LCD interface, pure sine wave output, and improved no-load power consumption, the PIP 12KW MAX delivers reliable and efficient power management for modern solar energy systems.

Built around a 48V battery platform, the PIP 12KW MAX features 2X dual independent MPPT trackers (with 3 sets of MC4 input), supporting up to 500V Voc per tracker and a combined PV array capacity of up to 18kW. Its advanced charging system provides up to 200A charging current, while integrated BMS compatibility supports major lithium battery brands including Pylontech, BYD, WECO, SOLTARO, as well as proprietary LIA/LIB batteries. Built-in Wi-Fi monitoring provides convenient system monitoring through a smartphone app, while anti-dust and anti-moisture coating helps enhance long-term product durability.

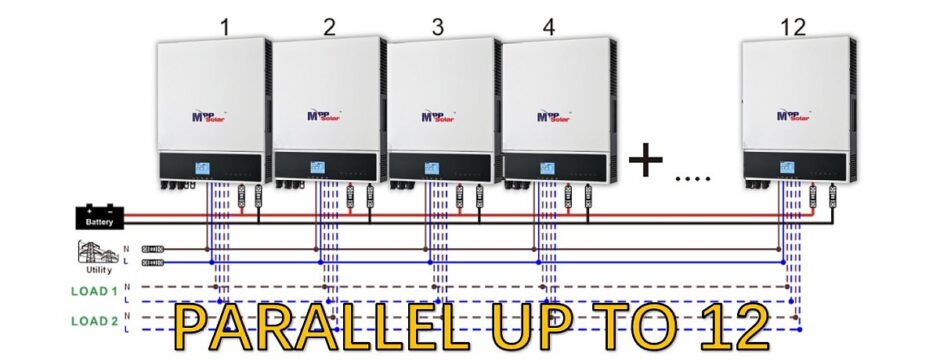

For larger energy systems, the PIP 12KW MAX can be paralleled with up to 12 units, supporting both single-phase and three-phase configurations. This makes it particularly suitable for applications requiring higher system capacity or future expansion.

Main Features

• New HMI LCD interface
• Anti-dust & anti-moisture coating to improve product life
• 12kW continuous output power

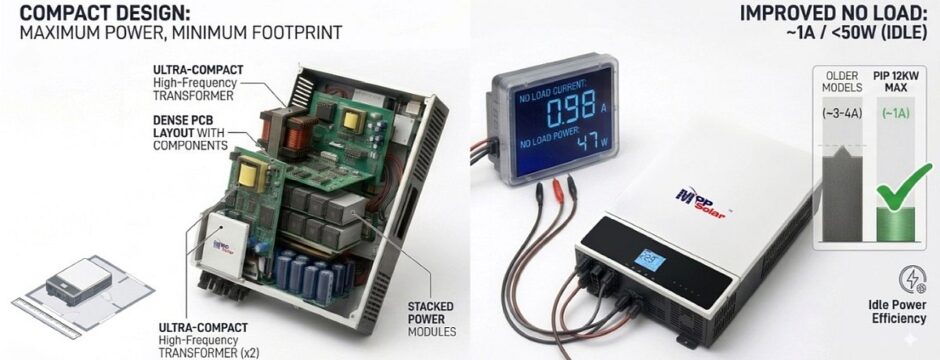

• Compact design — approximately 30% smaller than the previous design
• Dual independent MPPT trackers (3 sets of MC4 input)
• 500V maximum PV Voc per MPPT
• Up to 18kW total PV input — 12kW maximum per tracker
• Up to 200A maximum charging current
• Supports single-phase or three-phase configurations, up to 12 units max
• 48V battery system
• Pure sine wave output

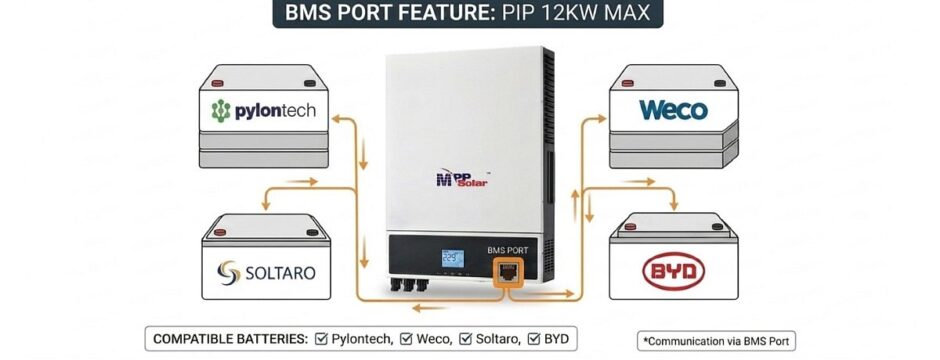

• Lithium battery BMS compatibility with Pylontech, BYD, WECO, SOLTARO and proprietary LIA/LIB
• Built-in Wi-Fi monitoring with smartphone APP
• Optional Remote Box for centralized monitoring of parallel systems

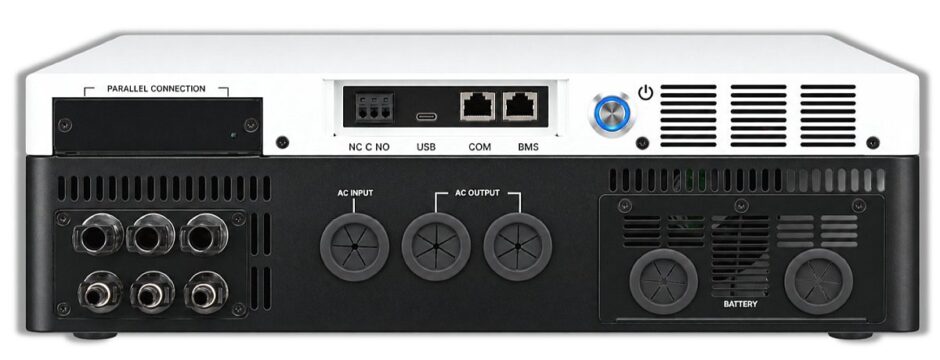

• USB / BMS / Dry Contact / Wi-Fi communication interfaces
• CE certified
