PIP-LV 110-120V Low Voltage Series


  • This special new 110v/120v Low Voltage series is designed with special focus to countries such as US, Canada, Puerto Rico, and other regions which use primarily 110V/120V load without the need for an external step-down transformer.  Please be careful this unit does NOT work with 220-240v load.

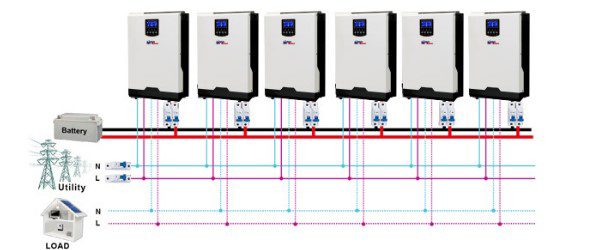

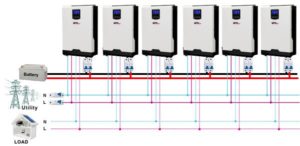

    Available from 800w to 2400w, all models in this series come with either MPPT or PWM solar charger and also offer free monitoring on PC which is bundled with purchase.  Stackable feature up to 6 units maximum is available only on 2424LV-HS and 2424LV-MSD, increasing max output capacity up to 2.4KW x 6 = 14.4KW.  Below is a simple diagram illustrating parallel setup, and parallel kit (sold separately) is also required on each inverter unit.

    無標題-1

    For more information, please download the catalogs at the tab page above or contact our sales office at sales@mppsolar.com.

    1. NEW!  1012LV-MS is now available as an updated PF1.0 version of the previous 812LV-MS. Maximum output is now 1KW.
    2. 110V / 120V adjustable output design for low voltage standard markets like USA, Canada
    3. Stackable — supports parallel operation up to 6 units (only on 2424LV-HS, 2424LV-MSD)
    4. Pure sine wave inverter with built–in max 50A PWM or max up to 80A MPPT solar controller
    5. 50Hz & 60Hz support
    6. Selectable AC input volt range based on load type
    7. Programmable parameters
    8. Max up to 60A utility charging
    9. Adjustable bulk & float charging voltage
    10. Support either grid or generator input
    11. Genset starter dry contact
    12. Overload and short circuit protection
    13. Lightweight, easy to install
    14. FREE monitoring software
    15. LCD Display + LED indicators
    16. RS232/USB communication interface



    Using Generator as AC-Input

    1. Generator power is recommended to be 50% larger than the inverter rating to reduce chances of overload.
    2. Inverter-generator is recommended due to its cleaner output than conventional generators.  Unsuitable generator output may be rejected by the inverter.

    1. Low Voltage Series Catalog PDF
    2. Parallel Guide
    3. Generator Requirement
    1. WatchPower User Manual

    **For WatchPower software please contact our Sales team sales@mppsolar.com directly.
