SPLIT PHASE LV SERIES – LV6548V 500V


CANbus BMS Support Update

Applicable only to models produced on/after Q4, 2022, LV6548V / LV6548V 500V can enable CANbus support for BMS connection through this update.  Simply download file to PC and extract folder to desktop, then follow this guide to launch program file.  After successful update, user can then access a new setting under “Battery Type” (05) specifically for CANbus.

  • The LV6548V 500V, is now available and features PV upgrade from 390V (on LV6548V) to 500V.  Backward parallel compatibility to LV6548V (390V) is confirmed, so users who have previously purchased the 390V version can simply buy the new 500V version and parallel with ease.  Similar to the LV2424 and 3048LV-MK, the LV6548V 500V is also a 120V output inverter alone however split phase output (120V/240V) can be configured by using minimum 2 or more units in parallel.

    UL1741 compliance (TUV certified) for US markets and CSA for Canada.

    LV6548V 500V also inherits many of the same features as the MAX series with features as follows:

    • high PV input Voc 500V
    • batteryless operation (single unit mode only)

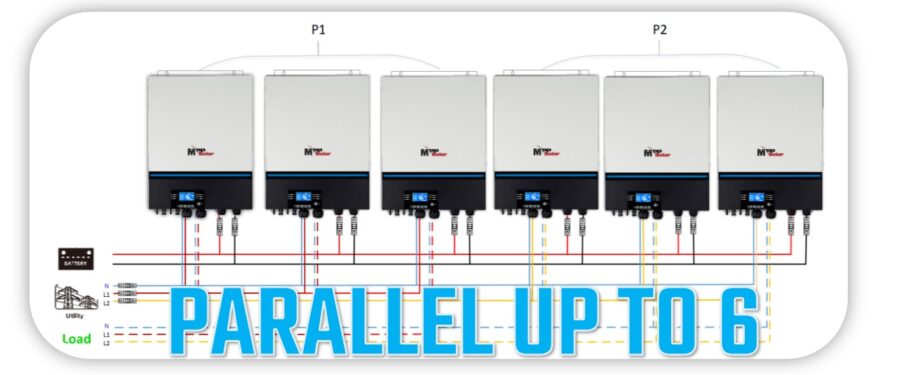

    • parallel up to 6 units
    • built-in WIFI transmitter
    • built-in parallel kits
    • Dual 2X PV input

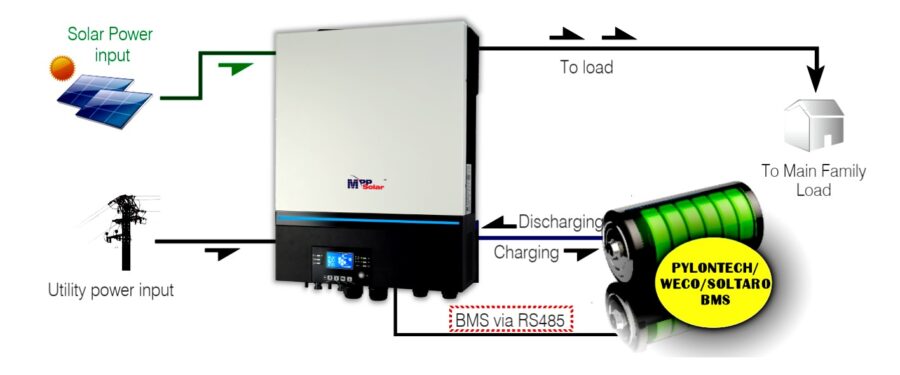

    • BMS support (Pylontech, Weco, Soltaro)*
    • Timer output & charging control


    Attractive built-in RGB LED bars allow users to easily identify operation mode to users and additional display options can be programmed from the LCD menu.

    Unique only to the SPLIT PHASE 120/240V capable models, parallel operation comes in 3 possible configuration: single phase, 3-phase, or split phase (120V/240V).

    Single Phase (120V)

    3-Phase (208V)

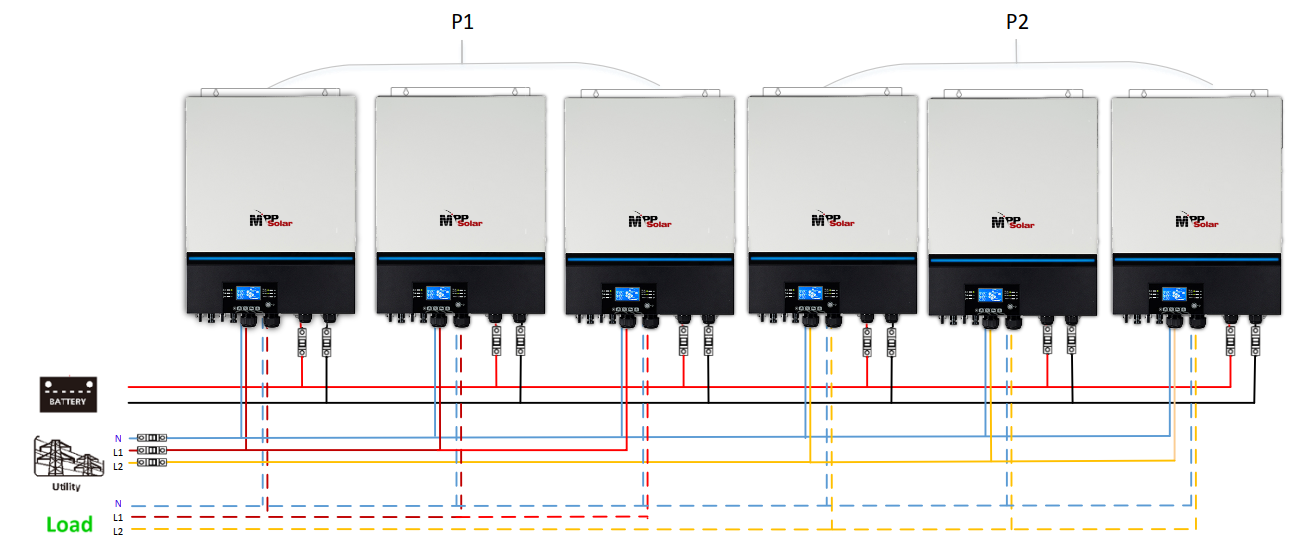

    Split Phase (120V/240V)

    Important note about Batteryless Operation

    When configuring system in parallel using multiple units, please be sure that a battery MUST be used or otherwise it may cause system to work incorrectly, or possibly lead to damage.  Due to the inconsistent nature of PV power, batteryless mode can only work normally under single-unit setup.

    For more information, please download the catalogs at the tab page above or contact our sales office at sales@mppsolar.com.

    *BMS cable required (optional accessory)

    • Max PV input up to 500V
    • UL1741 / CSA compliant
    • Customizable RGB LED setting to display operation mode
    • Max 6.5KW / 48V pure sine wave output 120V
    • Parallel support up to 6 units, in single phase (120V), split phase (120V/240V/208V) or 3-phase (208V).
    • Built-in parallel kit
    • Batteryless operation (single unit mode only)
    • Built-in WIFI transmitter to monitor data on smartphones
    • Timer control on AC output & charging
    • Pylontech/Weco/Soltaro Lithium BMS support*
    • Built-in genset starter dry contact
    • Equalization Charge

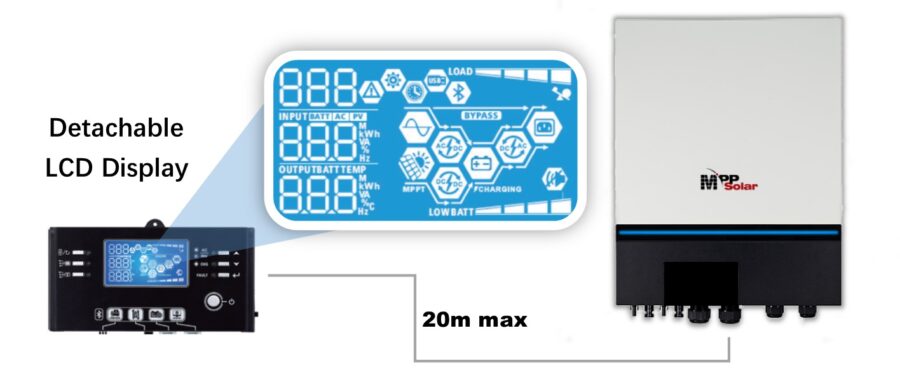

    • Detachable LCD remote display
    • Built-in MPPT solar charger max 120A
    • Built-in utility battery charger max 120A
    • Comprehensive programming options
    • Indoor installation only
    • Wide AC input range for bypass
    • FREE bundled monitoring software / APP on PC & smartphone

    *BMS cable required (optional accessory)

    Using Generator as AC-Input

    • Generator power is recommended to be 50% larger than the inverter rating to reduce chances of overload.
    • Inverter-generator is recommended due to its cleaner output than conventional generators.  Unsuitable generator output may be rejected by the inverter.

  • **For WatchPower software please contact our Sales team sales@mppsolar.com directly.
