PIP-HS/MS/MG PF1 Series

PIP-HS/MS/MG PF1 SERIES

• OVERVIEW
• FEATURES
• CATALOGS
• VIDEO
• MONITORING

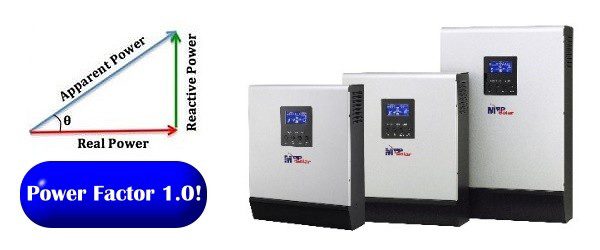

• The new “PF1” inverter standards for Power Factor 1.0 version of the PIP-HS and PIP-MS inverter family.  All features on the PF1 series are nearly identical to the original PF0.8 models and also retain all the useful functions such as generator starter dry contact and parallel support operation now up to 9 units (only on select 48v models).


  The new 5048MG is a variation model from the 5048MS, with the special added features of batteryless operation and high PV input voltage (450V), thereby allowing users more flexibility in wider range of application.

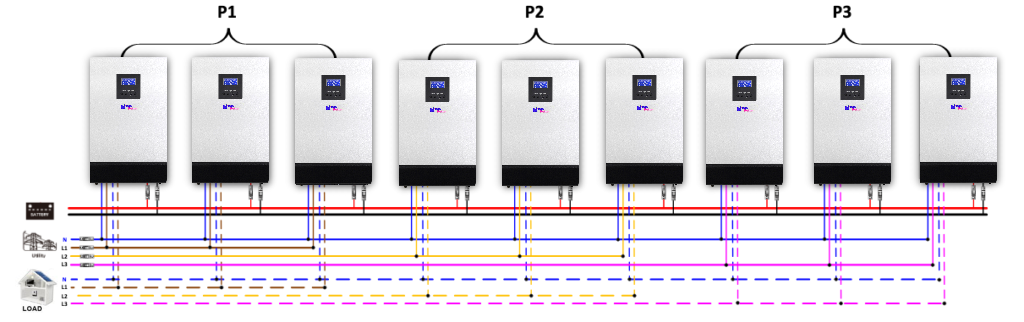

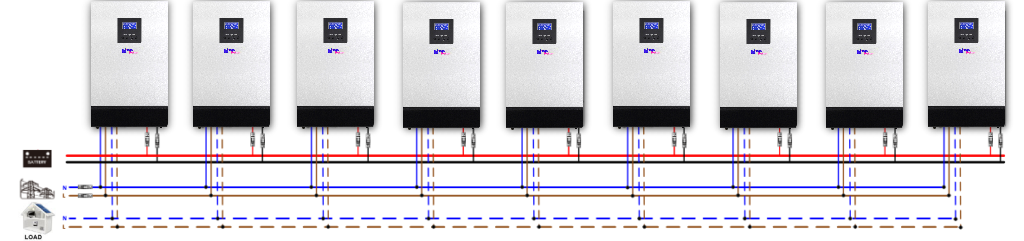

  It is very important to note that the PF1 versions, despite similarity to the original PF0.8 PIP-HS and PIP-MS inverters, cannot work together in parallel with the PF0.8 models.   To avoid any confusion, model names have been changed to differentiate.  All parallel units MUST have the same model name. Maximum parallel number of units is now 9, so users can configure a parallel system either as single phase or 3-phase, (shown below)

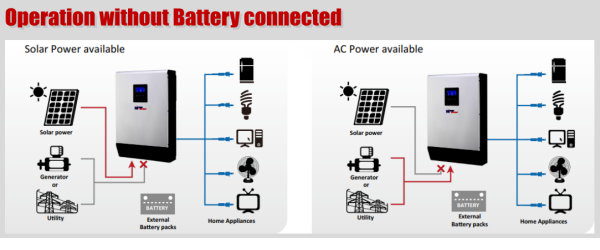

  Important note about Batteryless Operation

  When configuring system in parallel using multiple units, please be sure that a battery MUST be used or otherwise it may cause system to work incorrectly, or possibly lead to damage.  Due to the inconsistent nature of PV power, batteryless mode can only work normally under single-unit setup.

  For more information, please download the catalogs at the tab page above or contact our sales office at sales@mppsolar.com.

• • NEW! Power factor 1.0

  • NEW! Parallel-ready up to 9 units (MS 4-5k, MG only, require parallel kit to work)
  • NEW! Equalization up to 64V (MS 4-5k, MG only)
  • NEW! Max DC up to 66V (MS 4-5k, MG only)
  • NEW! High PV input up to 450V + Batteryless Operation (5048MG only)
  • NEW! Bulk charge (C.V.) setting time

  • Available from 1-3KW/24V and 4-5KW/48V
  • High frequency pure sine wave output, light-weight design
  • Built-in MPPT and PWM solar chargers
  • Programmable modes on LCD, e.g. AC priority vs. Solar(DC) priority
  • Adjustable Bulk/Float charging voltage
  • Support lead acid and other batteries
  • Indoor installation only
  • 3-stage utility battery charger up to 80A
  • 2x surge capacity
  • Wide AC input ranges
  • LCD + LED indicators
  • FREE monitoring software
  • Built-in generator starter dry-contact

  Using Generator as AC-Input

  • Generator power is recommended to be 50% larger than the inverter rating to reduce chances of overload.
  • Inverter-generator is recommended due to its cleaner output than conventional generators.  Unsuitable generator output may be rejected by the inverter.

• • PIP-HS (PF1) Series Catalog PDF
  • PIP-MS, PIP-MG 5K (PF1) Series Catalog PDF
  • PIP-HS/MS Parallel Guide
  • Generator Requirement
• • WatchPower User Manual

  **For WatchPower software please contact our Sales team sales@mppsolar.com directly.
