PIP-GE Series (High PV Volt)

PIP-GE SERIES

• OVERVIEW
• FEATURES
• CATALOGS
• MONITORING

• This PIP-GE series is a modified version of the PIP-HSE/MSE family, with extended high PV input voltage up to 500V.  Maximum charging current has also been increased to 80Amp.

  *As of February 2018, PIP-GE model now is officially available in PF1 (power factor = 1.0) output and comes with built-in generator starter dry contact and supports batteryless operation.  Anti-dust filter protection feature has also been added to this model for use in harsh environment.




  There are two models in this series:

  • 3024GE (3KW/24VDC, 80A MPPT, max 500V PV open circuit)

  • 5048GE (5KW/48VDC, 80A MPPT, max 500V PV open circuit)

  For more information, please download catalogs from tab page above or contact our sales office at sales@mppsolar.com.

• • NEW! Power factor 1.0 output

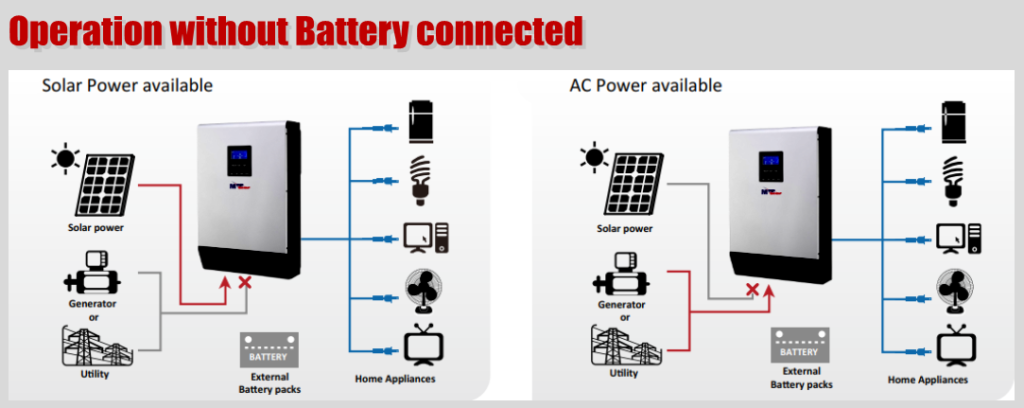

  • NEW! Batteryless operation
  • NEW! Anti-dust filter protection
  • NEW! Built-in generator dry contact

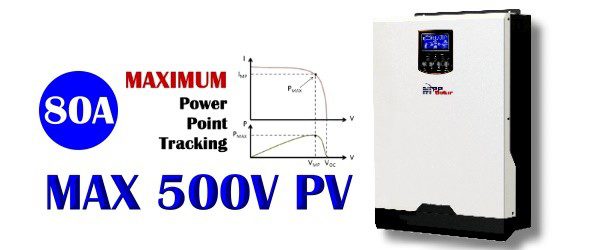

  • NEW! Special high-voltage MPPT model with up to 500VDC open circuit input
  • Max 80A MPPT solar charger and support up to 4kw PV array

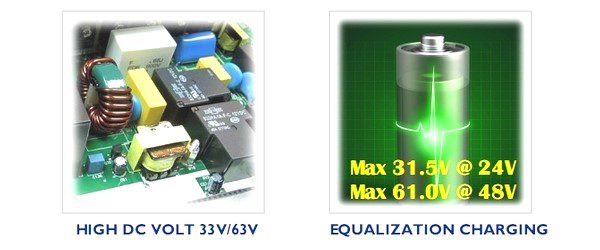

  • Increased charging voltage up to 31.5V @ 24V, or 61V @ 48V
  • Fuse implementation against battery reverse polarity
  • High frequency pure sine wave design
  • Suitable for Off-Grid or with Grid
  • Programmable parameters
  • Max up to 60A utility charging
  • Adjustable charging voltage
  • Wide AC input range
  • Lightweight, easy to install
  • 2X surge capacity max 5s
  • FREE monitoring software
  • LCD Display + LED indicators
  • USB communication interface

  Using Generator as AC-Input

  • Generator power is recommended to be 50% larger than the inverter rating to reduce chances of overload.
  • Inverter-generator is recommended due to its cleaner output than conventional generators.  Unsuitable generator output may be rejected by the inverter.

• • PIP-GE Series Catalog PDF
  • Generator Requirement
• • WatchPower User Manual

  **For WatchPower software please contact our Sales team sales@mppsolar.com directly.
